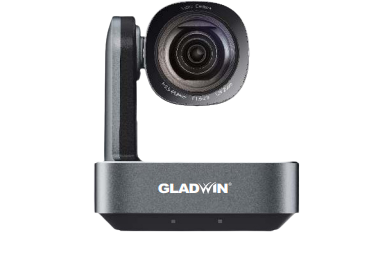

Gladwin 4K Camera

USB 3.0/ HDMI PTZ Camera with 12X Zoom

Image Sensor

Sony IMX415 1/2.8: CMOS

Effective Pixels

8.29MP, 16:9

Lens

f-3.9-46.8mm

Aperture

F1.6 - F9.6

Optical Zoom

12X Zoom

Horizontal Angle

70.820 (W) - 6.480 (T)

Vertical Angle

47.720 (W) - 73.660 (T)

Diagonal Angle

78.580 (W) - 7.420 (T)

Pan / Tilt Rotation

±1750, 900 ~ +900

Pan Control Speed

0.1 - 800/ sec

Tilt Control Speed

0.1 - 600/ sec

Preset Number

255 presets by Pelco D
Presets by Visca (10 presets by remove controller)

SNR

>50dB

Focus

Auto / Manual

Operation System

Windows 10, Windows 11
Android, Mac OSä 10.10 or higher

Input Voltage

DC 12V

Input Current

1.0A (Max.)

Power Consumption

13W (Max.)

Store Temperature

-100C ~ +600C

Store Humidity

20% ~ +90%

Working Temperature

-100C ~ +600C

Working Humidity

20% ~ +80%

Dimension (W*H*D)

171.6*192.6*171.6mm / 260*217*197mm

N.W. / G.W.

1430g / 2096g

Accessory

1xCamera: 1XUSB Cable: 1XPower Adapter:
1XWall Mount: 1X Manual

Video Interfaces

HDMI, TYPE-C, Ethernet

LAN

10M/100M Adaptive Ethernet Port

Network Protocol

RTSP, RTMP, ONVIF, GB28181

Control Interface

RS232 (Input & Output), RS485, TYPE-C (UVC1.1)

Digital Noise
Reduction

2D & 3D noise Reduction

Exposure

Auto / Manual
