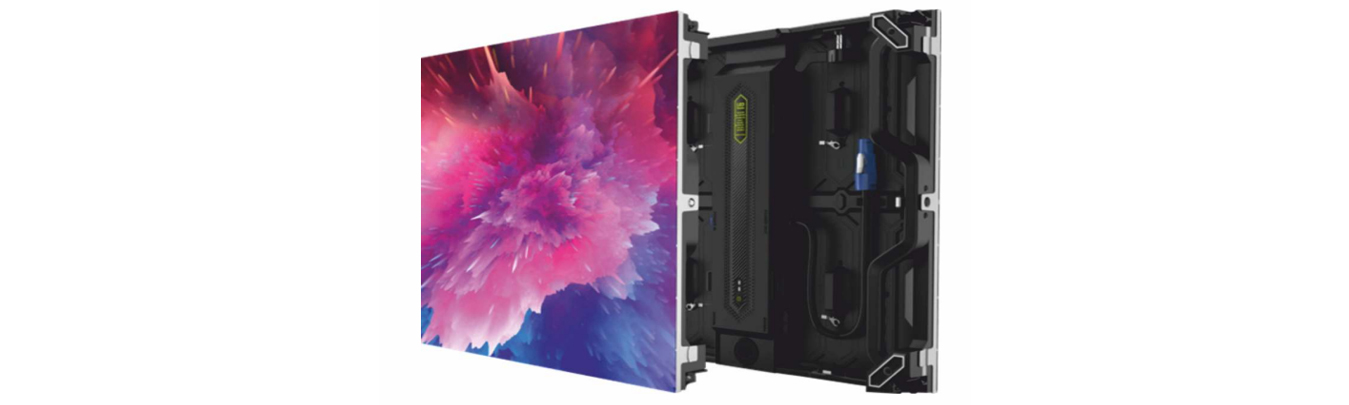

Gladwin Led Outdoor Video Walls
Item | P3.9 |
P4.8 |
P5.9 |
P7.8 |
P10.4 |
|---|---|---|---|---|---|
Pixel Pitch |
3.906mm |
4.807mm |
5.952mm |
7.8125mm |
10.417mm |
LED Type |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727 |
Module Resolution |
128x64 dots |
104x52 dots |
84x42 dots |
64x32 dots |
48x24 dots |
Driving Mode |
1/16 scan or 1/8 scan |
1/13 scan or 1/7 scan |
1/7 scan |
1/7 scan |
1/7 scan |
Module Pixels |
8192 dots |
5408 dots |
3528 dots |
2048 dots |
1152 dots |
Module Size |
500x250 mm |
500x250 mm |
500x250 mm |
500x250 mm |
500x250 mm |
Cabinet Size |
1000x1000 mm |
1000x1000 mm |
1000x1000 mm |
1000x1000 mm |
1000x1000 mm |
Cabinet Resolution |
256x256 dots |
208x208 dots |
168x168 dots |
128x128 dots |
96x96 dots |
Pixel Density |
65,536 dots |
43,264 dots |
28224 dots |
16384 dots |
9216 dots |
Minimum Viewing Distance |
³3.9m |
³4.8m |
³5.9m |
³7.8m |
³10.4m |
Brightness |
4000nits - 5000nits |
||||
IP Grade |
IP65 |
||||
Refresh Rate |
1,920Hz ~ 3,840Hz |
||||
Gray Scale |
14bits ~ 22bits |
||||
Viewing Angle |
H:1600 / V: 1600 |
||||
Power Consumption |
500W/m2 (Max) 200W/m2 (Average) |
||||
Input Voltage |
AC110V ~ AC220V@50Hz / 60Hz |
||||
Operating Temperature |
200C - 650C |
||||
Operating Humidity |
10% - 90% |
||||
Cabinet Material |
Aluminum Profile |
||||
Cabinet Weight |
30kg/m2 |
||||
Operating System |
Windows (Win7, Win8, etc.) |
||||
Signal Source Compatibility |
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
||||
