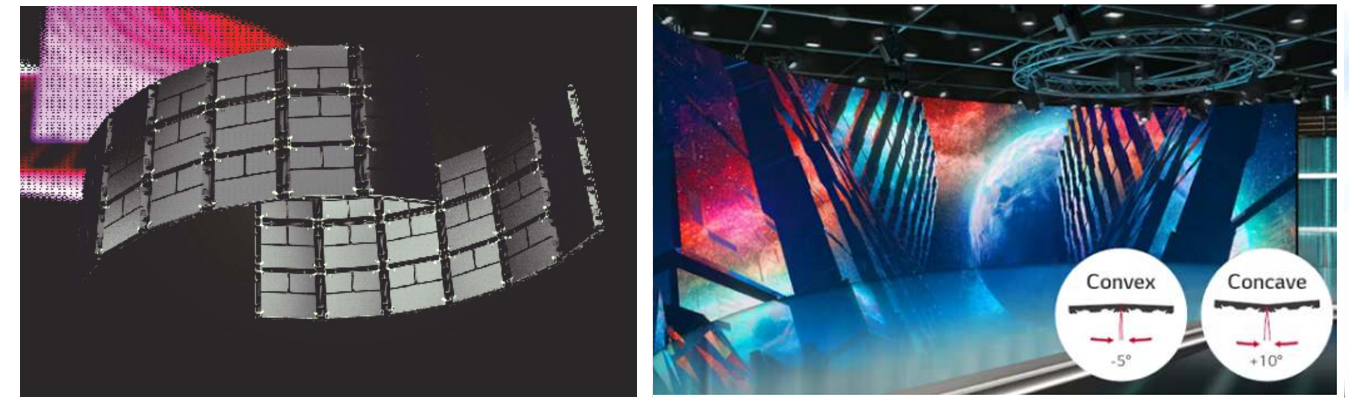

Gladwin Led Concave & Convex Video Walls
Product Specification |
|||||
|---|---|---|---|---|---|
Pixel Pitch |
1.56mm |
1.89mm |
2.6mm |
2.97mm |
3.91mm |
LED Configuration |
SMD1212 |
SMD1515 |
SMD2020 |
SMD2020 |
SMD2020 |
Pixel Density |
409,600dot/m2 |
278,784dot/m2 |
147,456dot/m2 |
112,896dot/m2 |
65,536dot/m2 |
Module Size |
250 x 250mm |
||||
Module Resolution |
160x160 dot |
132x132 dot |
96x96 dot |
84x84 dot |
64x64 dot |
Cabinet Size |
500x1000 mm (compatible for 500x500 mm/500 & 250mm/250x 250mm) |
||||
Cabinet Resolution |
320x640 dot |
264x528 dot |
192x384 dot |
168x336 dot |
128x256 dot |
Cabinet Weight |
9.7 kg |
||||
IP Rating |
IP 20 |
||||
Scanning Mode |
40s |
44s |
32s |
28s |
22s |
Brightness |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
600-800nits |
Viewing Angle |
1600 / 1600 |
||||
View Distance |
>1.56m |
>1.9m |
>2.6m |
>2.9m |
>2.9m |
Gray Scale |
14bit |
||||
Colors |
16.7M |
||||
Max. Power Consumption |
500W/m2 |
||||
Ave. Power Consumption |
500W/m2 |
||||
Refresh Frequency |
3840Hz |
||||
